Pixel pitch: 3.91mm Refresh rate: ≥1920Hz Brightness: ≥6000CD/㎡ Cabinet Size: 500*1000*90mm Cabinet Weight: 13kg

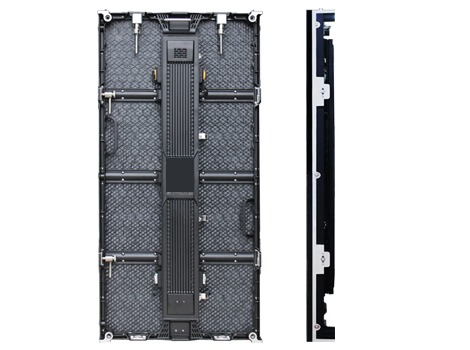

P3.91 outdoor rental hd led display adopt Narrow frame design,cabinet thickness only 80mm,more easy carry and light cabinet only 13kg,Easy to install and transportation costs saving.

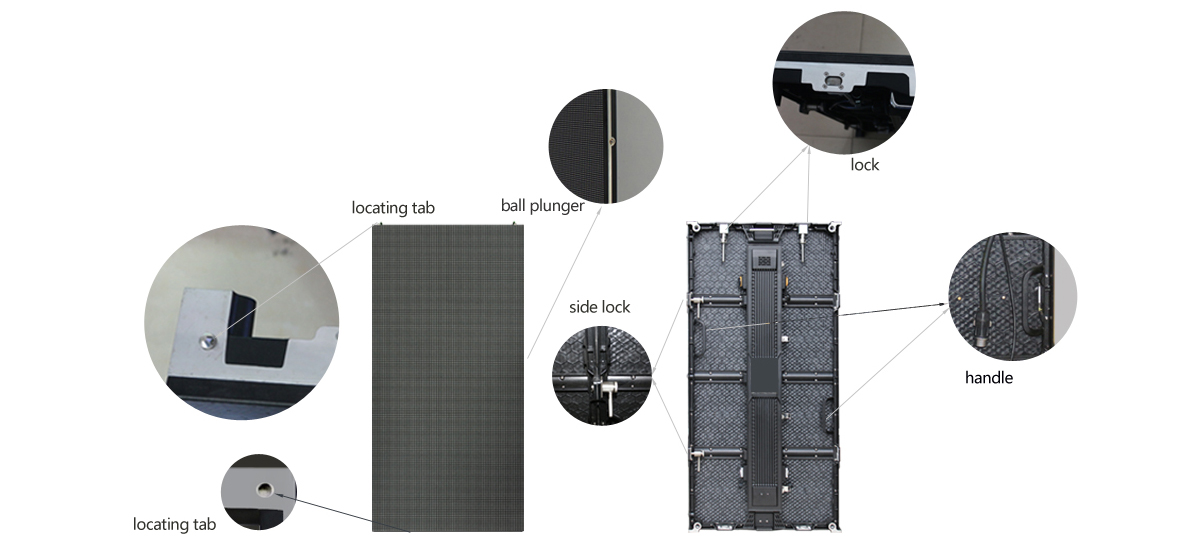

Die casting aluminum cabinet,each cabinet tolerance only 0.01mm. Cabinet splicing structure with positioning function,use alignment pin and alignment hole design very easy to connect and install,Whole screen flatness and seam is less than 0.05mm Humanization handlebar design make you more easy to move the cabinet.
Vertical 150,horizontal 120 viewing visual,make your screen has a larger viewing area. can get high-quality viewing information whatever which direction you are in.
P3.91 outdoor rental hd led display has High refresh/High contrast can reach 16 bit.Give you colorful viewing sensory
| PixelConfiguration | SMD1921 |
|---|---|
| Pixel pitch（mm） | 3.91 |
| Pixel density（dots/m2） | 65749 |
| Module resolution（W×H） | 64×64 |
| Module size （mm） | 250（W）×250（H） |
| Module weight （kg） | 0.72 |
| Maximum power consumption of the module（W） | 45 |
| Module of cabinet （W×H） | 2×2/2×4 |
| Cabinet resolution（W×H） | 128×128/128×256 |
| Cabinet size （mm） | 500（W）×500/1000（H）×75（D） |
| Cabinet area（m2） | 0.25/0.5 |
| Cabinet weight （kg） | 8.2/14.9 |
| Cabinet level up degree（mm) | ≤0.2 |
| Maintenance mode | Rear |
| =Cabinet raw material | Die-casting aluminum |
| Single-point brightness correction | yes |
| Single – point color correction | yes |
| White Balance Brightness （nits） | ≥3500（6500K） |
| Color Temperature (K) | 3200—9300(adjustable) |
| Viewing Angle (Horizontal / Vertical) | 160/120 |
| =Deviation of center distance of light – emitting | 3% |
| Brightness / chromaticity uniformity | ≥97% |
| Contrast | 4000：1 |
| Peak power consumption (W / m2) | 800 |
| =Average power consumption (W / m2) | 250 |
| Power supply requirements= | AC90~264V，frequency 47-63（Hz） |
| Frame rate (Hz) | =50&60 |
| Drive mode= | Constant drive，1/16扫 |
| Grayscale level | 65536 |
| Refresh rate (Hz) | ≥1920 |
| Number of color processing bits | 14bit |
| Video playback capabilities | 2KHD，4KHD |
| Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Storage temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Applicable standards | CCC，TUV-CE，ETL |
